Device History

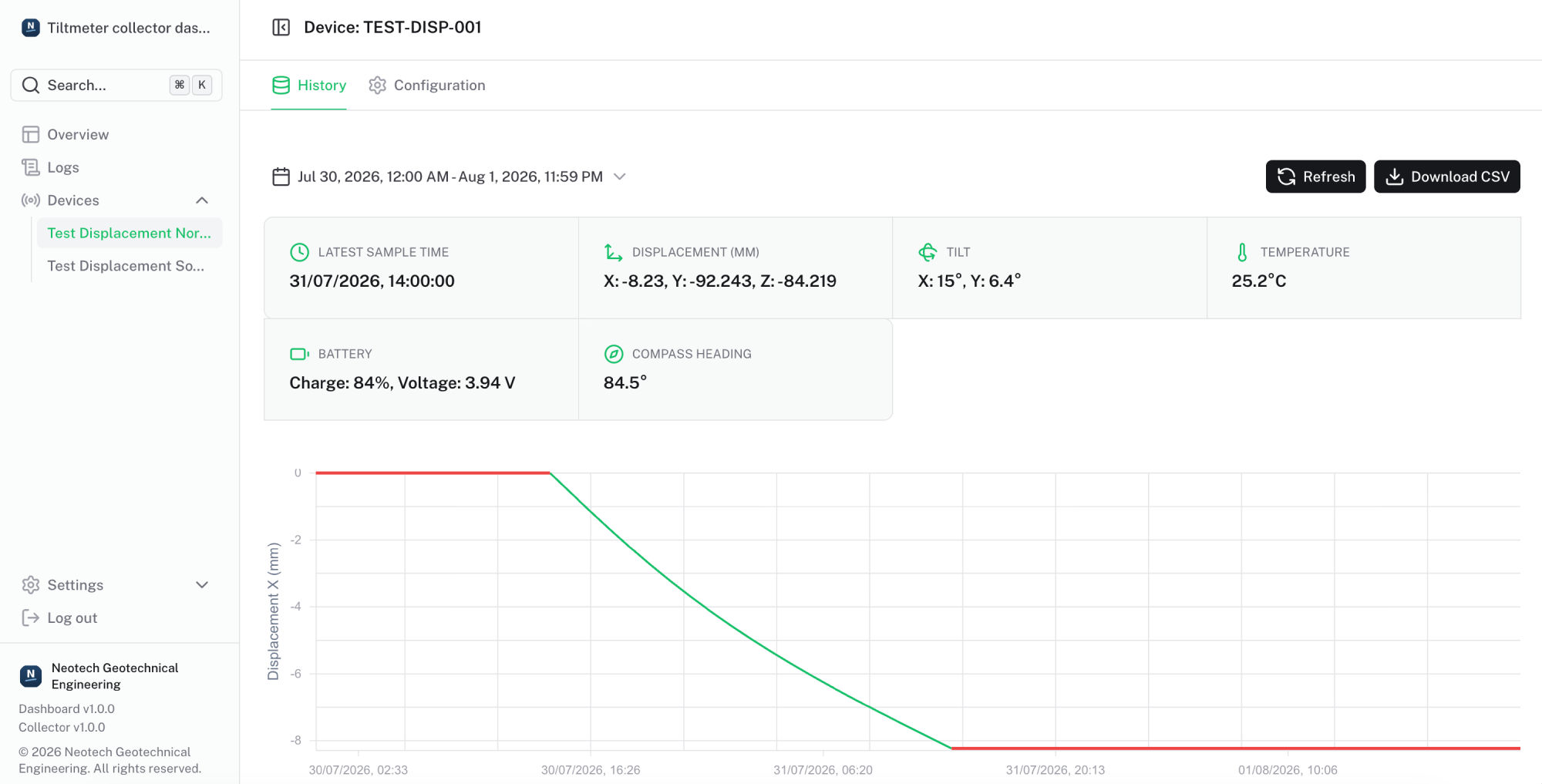

The Device History page is the main analysis view for one tiltmeter device. Open it from the Devices list in the sidebar or from a device card on the Overview page. The page title includes the selected device EUI so the operator can confirm which physical sensor is being reviewed.

The summary cards show the most recent sensor and GPS samples in the selected range.

Below the summary cards, the page renders time-series charts for displacement X/Y/Z, tilt X/Y, battery charge, battery voltage, temperature, latitude, longitude, altitude, GPS accuracy, satellites in use, and satellites in view.
